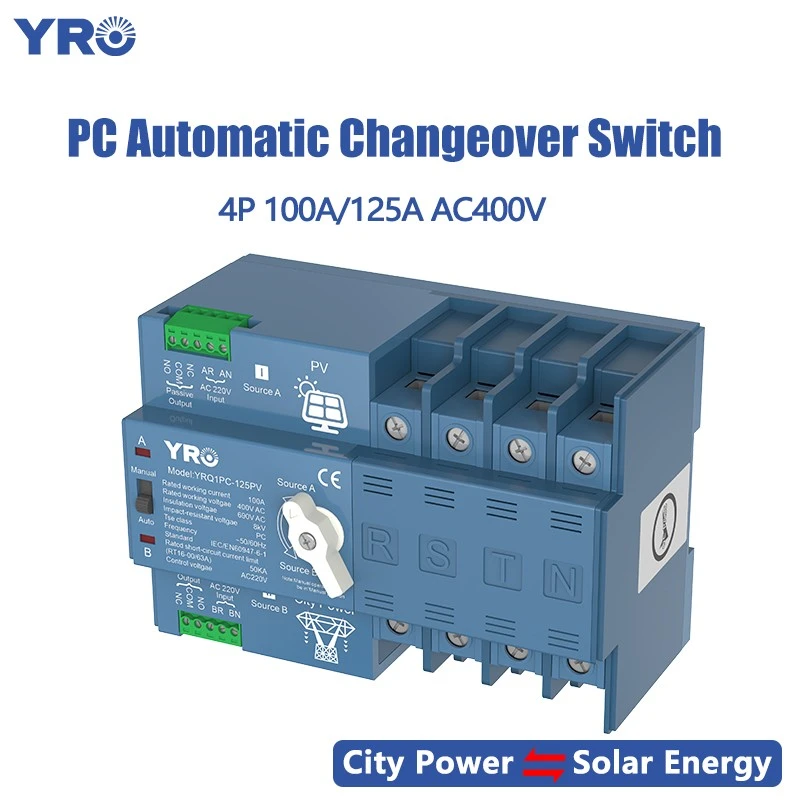

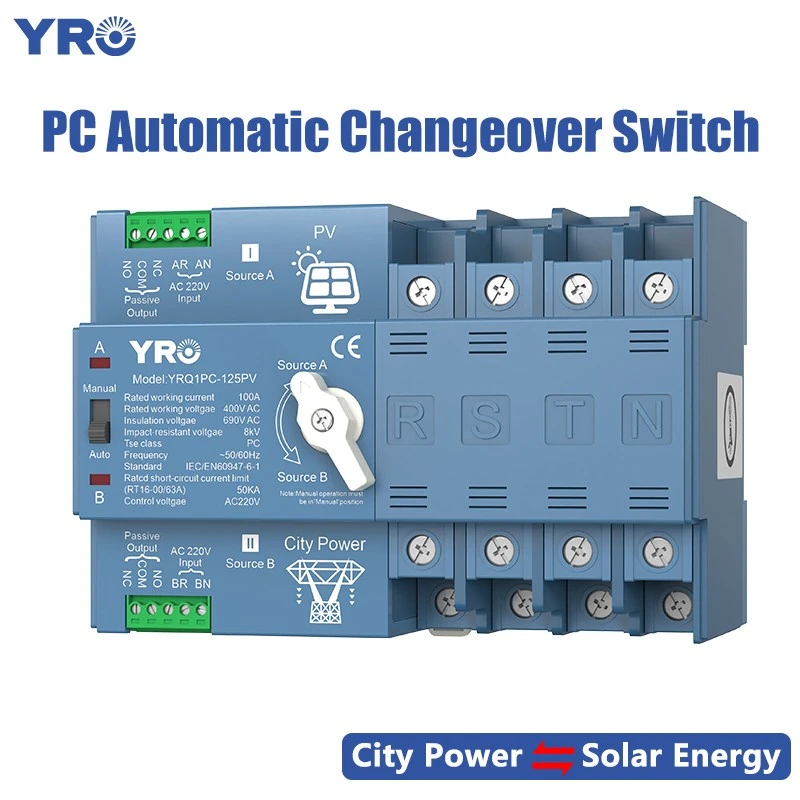

4P 125A 400V PV Type PC ATS

YRO 4P 125A 400V PV Type PC ATS is mainly used for automatic or manual switching between two different power sources (common power source and standby power source) to ensure that the load equipment can continue to obtain power supply. It is suitable for hospitals, data centers, communication base stations and other important places, where a power failure interruption may cause significant losses or endanger the safety of life, and the changeover switch can effectively avoid the power supply interruption problems caused by a single power failure.

1、Fast switching
When detecting the failure of the common power supply, it can quickly start the switching procedure and switch the load to the backup power supply within 30ms, minimizing the impact on the operation of the load equipment and guaranteeing the continuous operation of the key equipment.
2、Excellent electrical performance
Rated current 125A, rated voltage 400V parameters set to have a strong current-carrying and voltage withstand capacity, the contacts are made of high-quality conductive materials, contact resistance is small, less heat, can work stably in the rated working conditions for a long time, and has good insulation properties, to protect the use of safety.

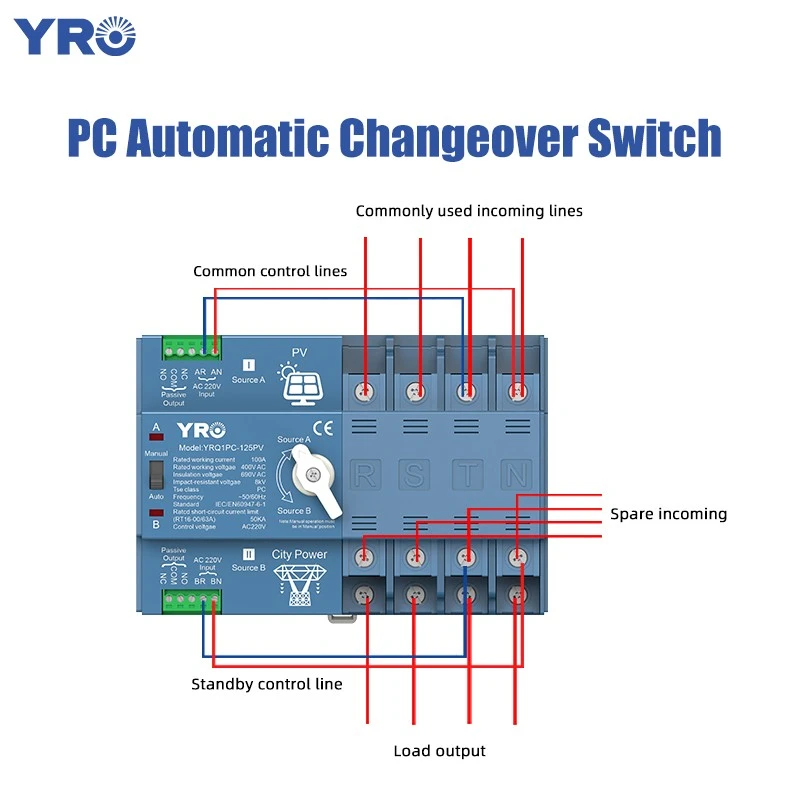

1、Wiring Diagram: YRO ATS is equipped with a clear wiring diagram, detailing the wiring location of each port, simplifying the installation process and ensuring accurate electrical connections.

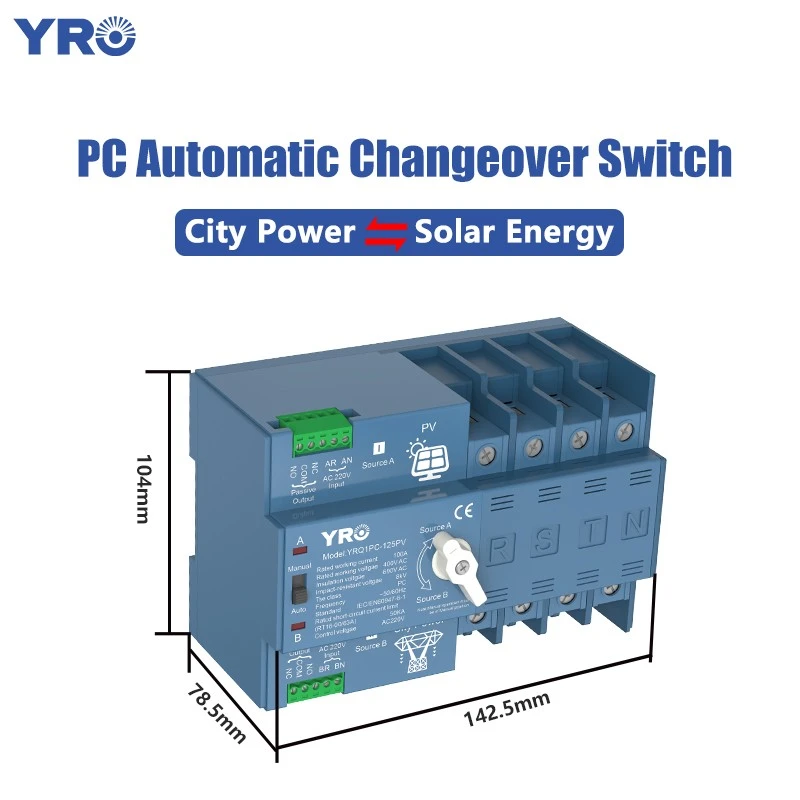

2、Dimensional Drawing: This ATS comes with a standard dimensional drawing, which clearly shows the shape and installation dimensions of the transfer switch, ensuring that the device can perfectly match the intended installation space, and facilitating precise layout and installation.
