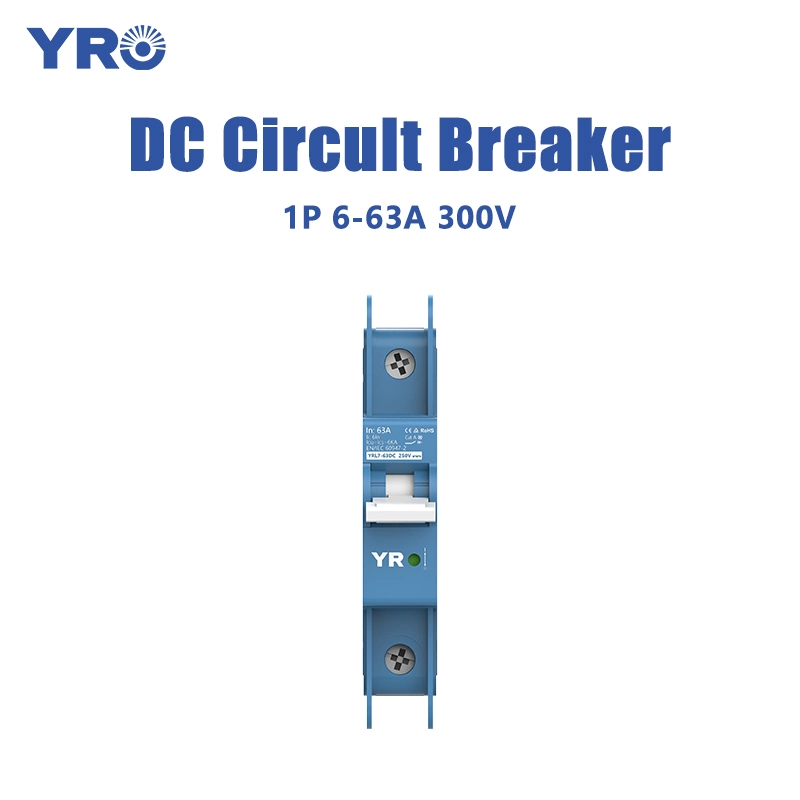

1P 6-63A 300V DC Circuit Breaker

The YRO 1P 6-63A 300V DC Circuit Breaker with a white handle is specifically designed for overload, and short circuit protection in single phase circuits. It operates under the conditions of a rated voltage of 300V and a rated current of 63A, and can effectively cut off the faulty circuit, to ensure the normal operation of various electrical equipment in a single phase power supply line. It is widely used in single phase power supply scenarios such as households and small commercial establishments.

Advantage of single pole protection: As a single pole circuit breaker, it can quickly respond to the fault current in a single phase circuit, avoiding affecting the entire power supply line due to the fault, ensuring the safety of the equipment on a single phase line, and realizing a precise and efficient protection mechanism.

Good adaptability: It is suitable for lines with a wiring specification of up to 16 square millimeters, which is convenient for installation in various conventional wiring scenarios. It can be well matched with different thicknesses of wires to ensure the stability of the circuit connection.

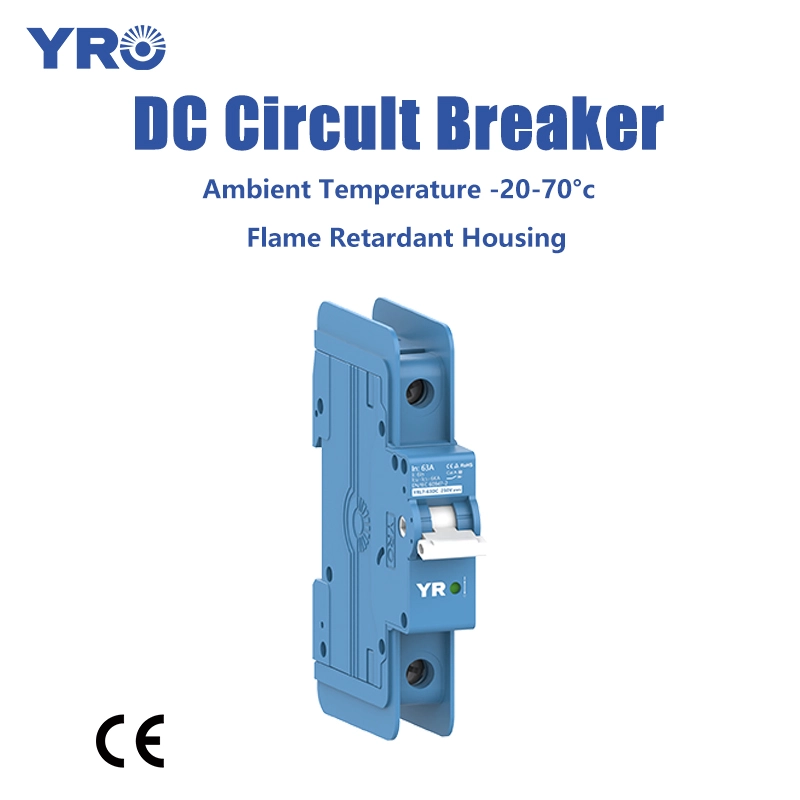

Reliable operation in a wide temperature range: It can work stably within the temperature range of -20 ~ +70℃. Whether in a cold winter or a hot summer environment, it can normally perform its circuit protection duties and meet the usage requirements under different climatic conditions.

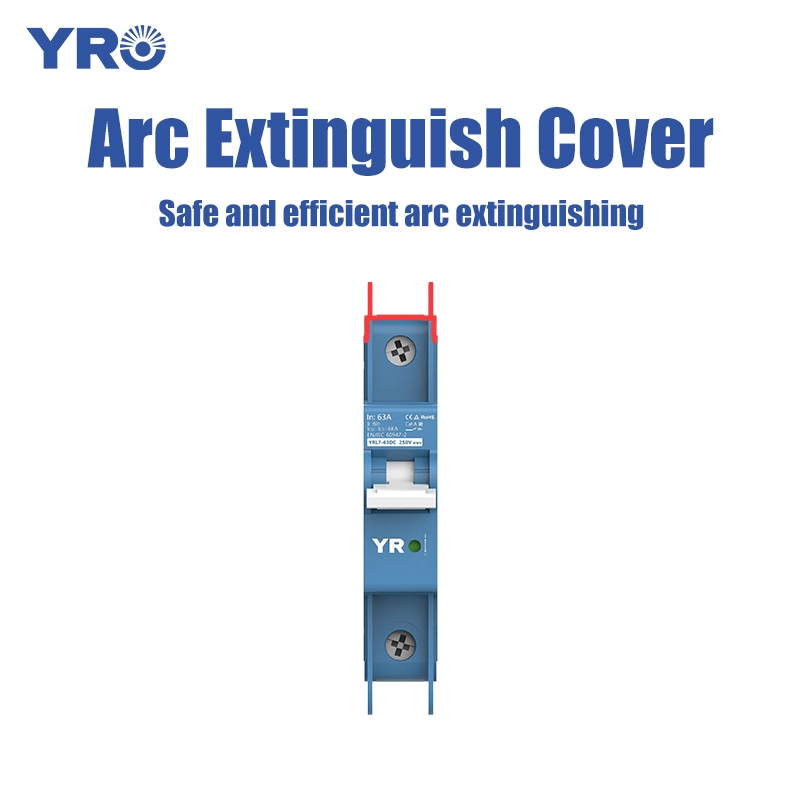

Arc extinguishing cover design: The YRO circuit breaker is equipped with a special arc extinguishing cover. When a short circuit occurs in the circuit and an arc is generated, the extinguishing cover can quickly and effectively extinguish the arc by virtue of its special arc structure and material characteristics, reducing the damage to the internal components of the circuit breaker, and the surrounding lines and enhancing the safety during short circuit protection.

Electrical life guarantee: The circuit breaker has been tested and optimized, and its electrical life can reach 1000 times. This means that under normal use conditions, it can be repeatedly switched on and off to deal with circuit faults, providing strong support for long term stable circuit protection and reducing the trouble of frequent replacement.

Compliance with high standards: YRO is a new energy manufacturer. The circuit breakers produced follow the RoHS directive, limiting the use of harmful substances to protect the environment and human health. At the same time, it has obtained CE certification, indicating that this product complies with relevant EU requirements, and the product quality and safety are trustworthy.
